Single-Phase And Off-Grid All-In-One Energy Storage System
1.Integrated 5.5kW on/off-grid inverter and expandable lithium battery module
2.IP20 waterproof grade

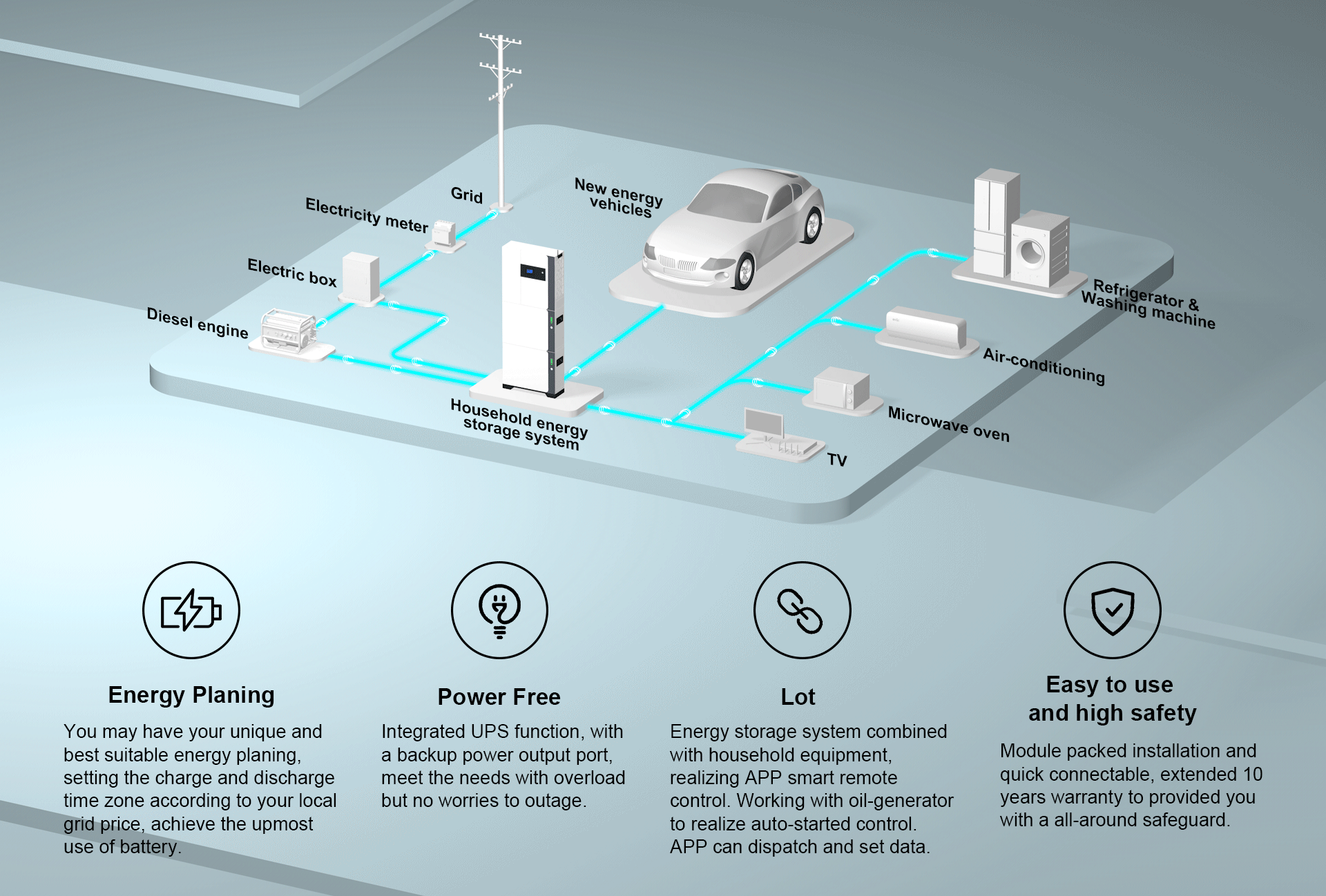

3.Programmable multiple operation modes: on-grid connection, off-grid connection and on-grid connection backup, generator linkage control
4.With perfect overload, over temperature, short circuit, low voltage, over voltage protection
5.Pure sine wave output, high power factor
6.Support WiFi, APP query status and control
7.Meet the multinational security and on-grid certification
8.Wireless quick insertion and removal and easy installation
9.The capacity can be flexibly expanded up to 30kWh
10.Ultra-long cycle life: 6000+ cycles





HP5500LO-ON

AC output: 230V±5% AC pure sine wave; output 5.5kW Max
AC input: Support 90V~280V AC voltage input
PV input: Support 120V~450V DC voltage input;2-way independent MPPT
Battery: 51.2V;Charge: 100A Max
Weight: 25kg
Dimension: 621*198*500mm
Certification: IEC 62109-1/-2,IEC 62477-1,IEC 62040,VDE-AR-N 4105:2018
DIN VDE V 0124-100:2020,CEI0-21:2019,CEI0-16:2019, G99:2020, NSR 097-2-1: 2017, EN50549-1:2019


HP51100-LO

Battery Capacity: 5120Wh

Normal Voltage: 51.2V
Life Circle: 6000
Battery Type: LiFePO4
Weight: 50Kg
Dimension: 620*198*550mm
Expandable Capacity:  expanded up to 30kWh
Certification: :IEC62619, UN38.3,EN/IEC61000-6-3, EN/IEC61000-6-1
